COSMETIC RAW MATERIALS
Sunscreen and skincare products utilizing the newest nanotechnology contribute to health and
beauty.
Thanks to our long-standing, ultrafine, high-purity and shape-control technology, our Titanium dioxide, barium, and zinc products are used to develop UV-blocking, easy spreading foundations, sunscreen products, and skincare products. Watch the video below to learn more about Sakai Chemical Industry’s SDG initiatives based on fine particle zinc oxide.
PRODUCT LIST
Titanium Dioxide
■Overview
Titanium dioxide is used in sunscreen and skincare products for its dual functions of excellent UV-B shielding and transparency.
Microfine Titanium Dioxide STR Series (Powder)
Provides effective shielding from UV-B rays while maintaining high transparency. Surface activity is successfully suppressed thanks to precise surface treatments.
Grade
| Product Name | Primary particle size(nm) | INCI name | Features and Applications |
|---|---|---|---|
| STR-100N | 15 | Titanium dioxide | Non-coated grade |
| STR-100A-LP | 15 |
Titanium dioxide Hydrated sillica Aluminum hydroxide Hydrogen dimethicone |
Standard |
| STR-100C-LP | 15 |
Titanium dioxide Aluminum hydroxide Hydrogen dimethicone |
Standard |
| STR-100W-LP | 15 |
Titanium dioxide Hydrated sillica Hydrogen dimethicone |
Standard |
| STR-100C-LF | 15 |
Titanium dioxide Aluminum hydroxide Stearic acid |
Fatty acid-treated grade |
| STR-100W-OTS | 15 |
Titanium dioxide Hydrated sillica Triethoxycaprylysilane |
Texture-modified grade |
| STR-100W(G) | 15 |
Titanium dioxide Hydrated sillica |
UV-A+UV-Bshielding grade |
| STR-40-OTS | 35 |
Titanium dioxide Triethoxycaprylysilane |
UVA-UVｂshielding grade |
■STR Series Electron Microscope View and Optical Properties
Different particle sizes demonstrate different properties. For example, STR-40 products offer high UV-A shielding, while STR-100 products offer high transparency.
【STR-100A-LP TEMimage】
Titanium dioxide is densely coated.

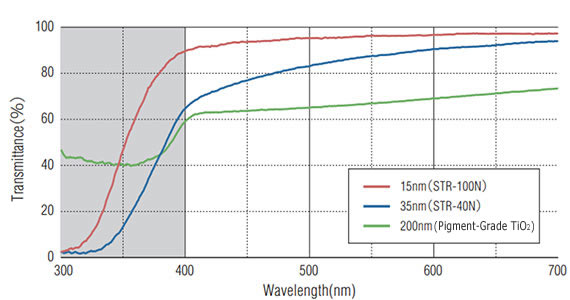

【Optical characteristics of STR series】
Microfine Titanium dioxide Dispersion DIS and GT Series
■Overview
Microfine Titanium dioxide STR Series (Liquid Dispersion)
Grade
| Product Name | Dispersoid(Powder) composition(wt%) |
Dispersion medium | Powder grade | particle size(nm) | Features and Applications |
|---|---|---|---|---|---|
| DIS-AB-10W | 50 | Water | STR-100W-LP | 15 |
High SPF、Good feel O/W Wlayersorientation |
| GT-10W2 | 40 | Water | STR-100W | 15 | O/W Wlayersorientation |
| DIS-11A | 40 | Cyclopentasiloxane | STR-100A-LP | 15 | Standard W/O Olayersorientation |
| DIS-12C | 45 | Cyclopentasiloxane | STR-100C-LP | 15 | W/O Olayersorientation |
| DIS-OP-10A | 50 | Ethlhexyl palmitate | STR-100A-LP | 15 | High passivity O/W Olayersorientation |
| DIS-TL-10A | 50 | Isotridecyl isononanoate | STR-100A-LP | 15 | High passivity O/W Olayersorientation |
Pigment-grade Titanium Dioxide MKR Series
Grade
| Product Name | Particle size(nm) | INCI name | Features and Applications |
|---|---|---|---|
| MKR-1 | 200 | Titanium dioxide Hydrogen dimethicone |
Hydrophilic.Aluminum-free. Can be used in water-based formulations. |
| MKR-1S | 200 | Titanium dioxide Hydrogen dimethicone |
Hydrophobic. Aluminum-free. Reduced photocatalytic activity in comparison to compatitors'products. |
Inquiries
Cosmetic Innovation Department
TEL +81-3-5823-3725
Zinc Oxide
■Overview
Zinc oxide is used in sunscreen and skincare products for its dual functions of excellent UV-A shielding and transparency.
Ultrafine Zinc Dioxide FINEX Series (Powder)
Provides effective shielding from UV-A rays while maintaining high transparency.
Grade
| Product Name | Primary particle size(nm) | INCI name | Features and Applications |
|---|---|---|---|
| FINEX-50 | 20 | Zinc oxide | Non-coated grade |
| FINEX-30 | 35 | Zinc oxide | Non-coated grade |
| FINEX-50LP | 20 |
Zinc oxide Hydrogen dimethicone |
Standard |
| FINEX-33W | 35 |
Zinc oxide Hydrated sillica |
Passivated grade |
| FINEX-52W-LP2 | 20 |
Zinc oxide Hydrated sillica Hydrogen dimethicone |
Passivated grade |
| FINEX-33W-LP2 | 35 |
Zinc oxide Hydrated sillica Hydrogen dimethicone |
Passivated grade |
| FINEX-50S-LP2 | 20 |
Zinc oxide Hydrogen dimethicone |
High-transparency grade |
| FINEX-30S-LPT | 35 |
Zinc oxide Hydrogen dimethicone |
Low-viscosity grade |
| FINEX-50-OTS | 20 |
Zinc oxide Triethoxycaprylysilane |
Texture-modified grade |
| FINEX-30-OTS | 35 |
Zinc oxide Triethoxycaprylysilane |
Texture-modified grade |

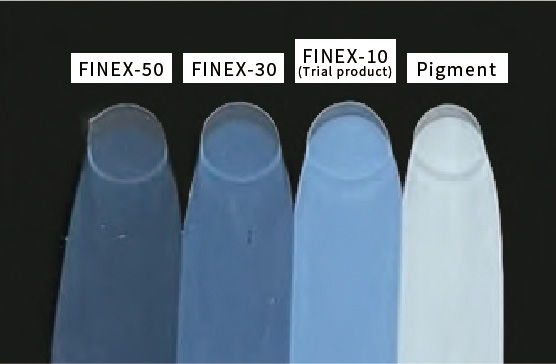

■Optical characteristics of FINEX Series
Characteristics vary based on the particle size.FINEX-25 has high UVA shielding performance,and FINEX-50 has high transparency.
【FINEX-52W-LP2 TEM image】
Zinc oxide is densely coated by a sillica layer.

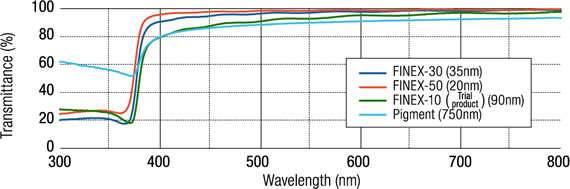

【Total light transmittance】

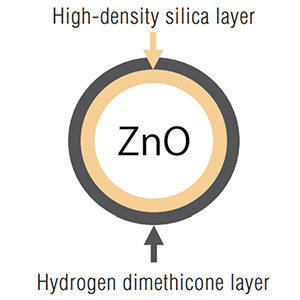

■High-Density Silica Coating (Inactive Grade)
Higher silica processing volume provides stronger suppression of photocatalytic activity.
high-density sillica coating

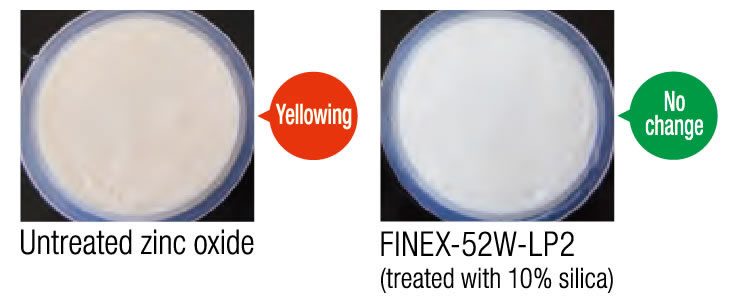

Different silica processing offers different activities (Vaseline discoloration test)
Ultrafine Zinc oxide Dispersion DIF Series
■Overview
A liquid dispersion of the Ultrafine Zinc Oxide FINEX series.
Grade
| Product Name | Dispersoid(Powder) composition(wt%) |
Dispersion medium | Powder grade | particle size(nm) | Features and Applications |
|---|---|---|---|---|---|
| DIF-AB-33W | 60 | Water | FINEX-33W-LP2 | 35 |
High transparency、Good feel O/W Wlayersorientation |
| DIF-3ST2 | 50 | Cyclopentasiloxane | FINEX-30S-LPT | 35 |
Standard W/O Olayersorientation |
| DIF-AW4 | 50 | Cyclopentasiloxane | FINEX-52W-LP2 | 20 |
High transparency W/O Olayersorientation |
| DIF-3W4 | 60 | Cyclopentasiloxane | FINEX-33W-LP2 | 35 |
High UV shielding W/O Olayersorientation |
| DIF-5CS | 50 | Cyclopentasiloxane | FINEX-50-OTS | 20 |
Good feel W/O Olayersorientation |
| DIF-OP-3W | 70 | Ethlhexyl palmitate | FINEX-33W-LP2 | 35 |
High passivity O/W Olayersorientation |
| DIF-TL-3W | 70 | Isotridecyl isononanoate | FINEX-33W-LP2 | 35 |
High passivity O/W Olayersorientation |
Hexagonal Flake-shaped Zinc oxide XZ Series
■Overview
Hexagonal flake zinc oxide is available in different particle sizes to match a wide range of sun care and cosmetic product applications.
Grade
| Product Name | Particle size(nm) | Thickness(nm) | INCI name | Features and Applications |
|---|---|---|---|---|
| XZ-100F-LP | 100 | 30 |
Zinc oxide Hydrogen dimethicone |
High UV shielding effect. |
| XZ-300F-LP | 300 | 100 |
Zinc oxide Hydrogen dimethicone |
Booster effect to increase SPF Can be also used as a white pigment. |
| XZ-1000F-LP | 1000 | 290 |
Zinc oxide Hydrogen dimethicone |
Good skin feel and the ability to produce optimal whiteness enable it to be substituted for pigment-grade titanium dioxide. |
| XZ-3000F-LP | 3000 | 750 |
Zinc oxide Hydrogen dimethicone |
Best skin feel in the series. |
| XZ-1000FST | 1000 | 80 | Zinc oxide | The thinning has improved UV shielding ability and feel. |
*Non-coated items also included in lineup
Spherical Zinc oxide Formed by Flake-shaped Particles CANDY ZINC
Grade
| Product Name | Particle size(nm) | INCI name | Features and Applications |
|---|---|---|---|
| CANDY ZINC 1000 | 1000 |
Zinc oxide Polysordate 80 |
Has a good skin feel while also offering high ultraviolet shielding and sebum absorption effect. |
*Non-coated items also included in lineup

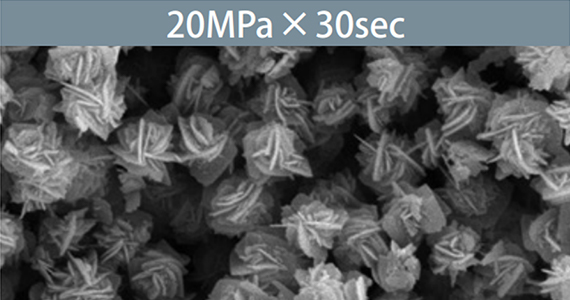

■Pressure resistance test
2MPa particles keep their shape even after pressing at 2MPa.
《Measurement conditions》
2g of test samples were placed in a 35mm diameter ring and compacted.
■Sebum absorption of CANDY ZINC
CANDY ZINC has a high sebum absorption effect.
《Mesurement method》
- Artitical sebum was mixed with test samples in centrifuge tubes,in the ratios shown above.
- After being left to stand for 30 minutes,the mixtures were centrifugally separated,and the separated solvents were collected.
- The solvents were measured using FT-IR to enable calculation of the peak area of 2045-2875 cm-1(C-H symmetric stretch vibration) derived form sebum.
- Calibration curves were formulated in order to calculate the sebum absorption rate.The artificial sebum was produced by mixing oleic acid,squalene,and olive oil in a ratio of 1:2:2
LARGE PARTICLE ZINC OXIDE LPZINC series
Grade
| Product Name | Particle size(μm) | INCI name | Shape |
|---|---|---|---|
| LPZINC-2 | 2 | Zinc oxide | amorphous |
| LPZINC-5 | 5 | Zinc oxide | amorphous |
| LPZINC-11 | 11 | Zinc oxide | amorphous |
| LPZINC-30S | 40 | Zinc oxide | spherical |
| LPZINC-50S | 70 | Zinc oxide | spherical |
*Coated items also included in lineup
【LPZINC-11】
【LPZINC-30S】
■LPZINC Features
- Low average friction factor, great texture.
- Anti-odor and anti-bacterial properties.
- Same sebum adsorption effect as CANDY ZINC.
- Excellent thermal conductivity, suitable for high-density filling and blending with a variety of plastics.
Inquiries
Cosmetic Innovation Department
TEL +81-3-5823-3725
Barium

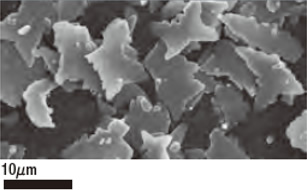

Flake-shaped barium sulfate H
Grade
| Product Name | Particle size(μm) | INCI name | Characteristics |
|---|---|---|---|
| H | 7 | Barium sulfate | Offers matte finish. |
| HM | 10 | Barium sulfate | Good balance of matte and luster finish. |
| HL | 15 | Barium sulfate | Offers more luster than HM. |
| HG | 20 | Barium sulfate | The grade with the most shiny luster finish. |
| H-LFM | 7 | Barium sulfate Magnesium myristate |
Matte finish with good smoothness. |
| HG-LFP | 20 |
Barium sulfate Magnesium hydroxide Palmitic acid |
Luster finish with good smoothness. |
*Coated items also included in lineup
■Long-Lasting Soft Focus Effect of H-LFM Lamellar Barium Sulfate
Lamellar Barium sulfate has a higher soft-focus effect than mica and has proven effective for long-lasting makeup applications.
《Evaluation Method》
First, after face washing, apply skin lotion and milky lotion and allow them to soak in for 15 minutes. Next, apply an appropriate quantity of powder foundation, and quantify the number of spots and pores using a VISIA skin analyzer.
■Comparative data of flake-shaped barium sulfate and other materials
The soft effect of flake-shaped barium sulfate is higher than with other materials.
《Measurement conditions》
0.2g of sample + 0.8g of silicone(PWC = 20 wt%) were dispersed twice with 25 turns at 100 pounds in a Hoover muller,applied to a glass plate with a 1mil applicator,and measured in a haze meter.
Inquiries
Cosmetic Innovation Department
TEL +81-3-5823-3725
Calcium
■Overview
Spherical particles with a uniform particle size provide great texture and a moderate soft-focus effect. Alternative material to plastic beads.

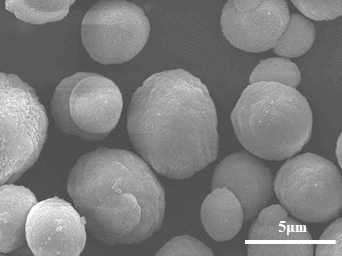

Spherical Calcium Carbonate Calmaru
Grade
| Product Name | Particle size(μm) | INCI name | Oil absorption | Features and Applications |
|---|---|---|---|---|
| SCS-M5 | 5 |
Calcium carbonate Sodium metaphosphate |
42 ㎖ / 100g(IPM) | Offers both excellent soft foucus effect and a high level of press moldability. |

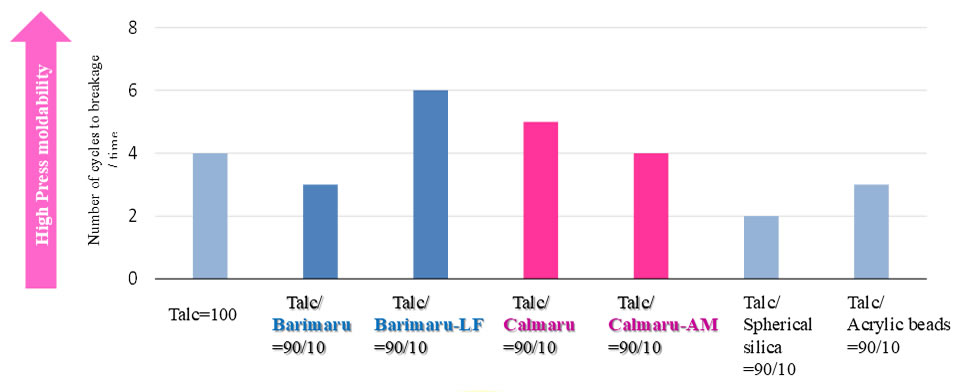

■Drop test of molded compound
By blending Calmaru and Flake-shaped barium sulfate H,press formability is improved.
《Measurement conditions》
Samples(10g) were placed in a vessel and molded by pressing at 2MPa for 30sec.The molded compounds were dropped from a height of 10 cm,and the number of cycles until breakage was recorded.

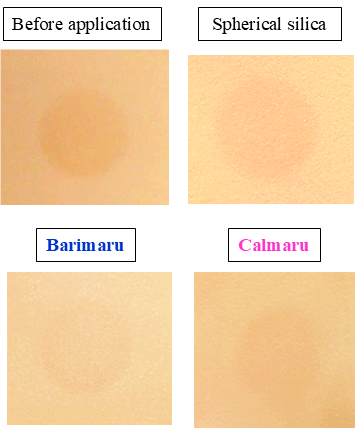

■Soft focus effect of Calmaru after sebum absorption
Even after moistening with sebum,Calmaru does not change color and keeps its soft focus effect.
《Measurement method》
Artifical sebum (0.9g) was mixed with test materials(1.2g),and the powder was checked for color change.The artifical sebum was produced by mixing oleic acid,squalane,and olive oil in a ratio of 1:2:2.
The change in the soft focus effect of the extender pigment was examined using oleic acid,one of the major components of sebum.
Inquiries
Cosmetic Innovation Department
TEL +81-3-5823-3725
Water Repellent Pigment 1, 3-BG Dispersion
DIP(N) Series
Features
・ High-viscosity pastes with water-repellent pigments dispersed in 1, 3-butylene glycol.
・ High viscosity design suppresses pigments subsidence and allows for easy handling.
・ Long-lasting makeup application is improved by mixing water repellent powders in a water phase.
Grade
| Product Name | Pigment Type | Powder composition (wt%) |
Dispersant | 1,3 Butylene Glycol |
|---|---|---|---|---|
 DIP-T1(N) |
Hydrogen dimethicone-treated Titanium dioxide | 75％ | 3.0％ | 22.0％ |
 DIP-R1(N) |
Hydrogen dimethicone-treated red iron oxide | 50％ | 1.5％ | 48.5％ |
 DIP-Y1(N) |
Hydrogen dimethicone-treated yellow iron oxide | 60％ | 2.5％ | 37.5％ |
 DIP-K1(N) |
Hydrogen dimethicone-treated black iron oxide | 60％ | 2.5％ | 37.5％ |
【Water dispersibility】
【Long lasting effect】
Inquiries
Cosmetic Innovation Department
TEL +81-3-5823-3725
Cosmetic Inorganic Fluorescent Materials
Cosmetic Inorganic Fluorescent Materials Lumate® Series
Characteristics
◯Absorbs harmful UV rays,transforming them to visible light to shine.
◯Composed of elements used in cosmetic materials.
◯Green (Lumate®G) corrects reddish hues,red (Lumate®R) gives skin a healthy look,and blue (Lumate®B) gives it a translucent look.
◯Various shining colors including white can be produced by combining the three Lumate products.
◯Lumate®G(Particle size 2.5μm)
INCI name：Zinc oxide
【SEM image】
【Emission / excitation spectra】

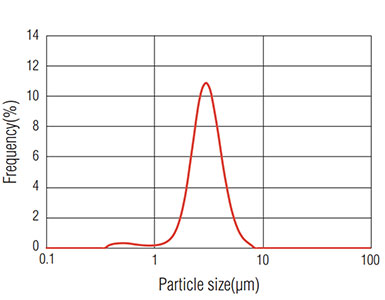

【Particle size distribution】
◯Lumate®R(Particle size 3.0μm)
INCI name：Magnesium / Manganese / Titanium Oxide
【SEM image】
【Emission / excitation spectra】
【Particle size distribution】
◯Lumate®B(Particle size 8.0μm)
INCI name：Calcium Cerium Phosphate
【SEM image】
【Emission / excitation spectra】
【Particle size distribution】
Inquiries
Cosmetic Innovation Department
TEL +81-3-5823-3725
